FABRIC FACELIFT
Redesigning the Bank Leumi Façade

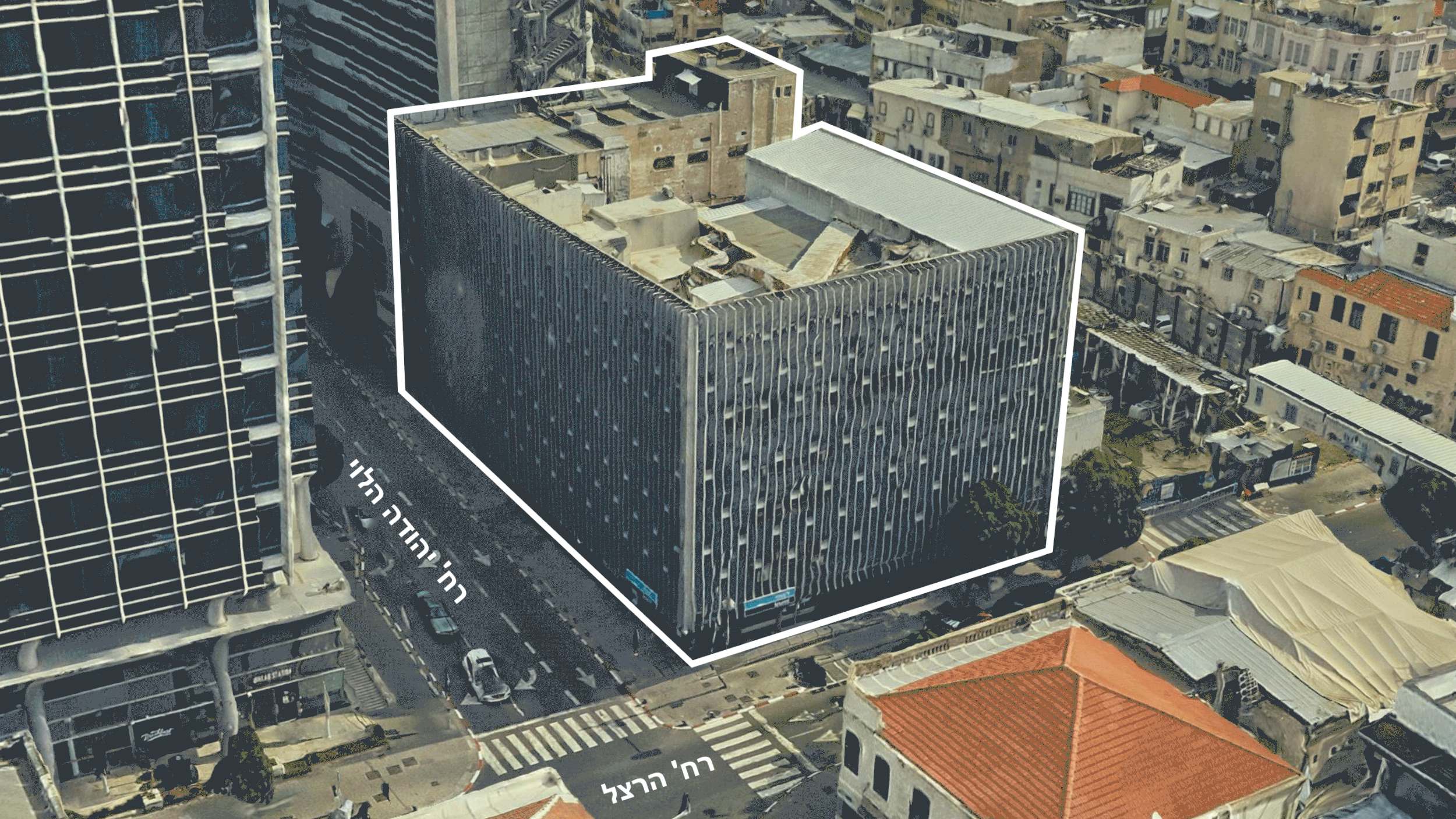

Introducing the transformation of Bank Leumi's Hertzel Street branch – a testament to Tel Aviv's banking history since the 1920s. Originally known as the "Anglo-Palatine Bank," this building underwent changes in the 50s and a remarkable renaissance in the 90s, adopting a double façade for innovative shading. Being the first of its kind in the city, the double skin exterior made it somewhat of a land mark in the city. However, time and the elements have left their marks on the concrete and steel cloak, eroded by the relentless sun and sea breeze, leaving it in desperate need of renovation.
The mission: reimagining the double façade. Keeping the original structure underneath while enrobing it in a more contemporary dress.
Comprised of a Teflon-coated fiberglass membrane cloth that attaches to a grid of pre-stressed stainless steel cables, the new design shades the building from the harsh sun without blocking the light completely. This contributes to reduce energy consumption, since less electrical lighting is required during the day with more diffused light coming into the space through the fabric. The simple cable wire and textile system is modular and parts can be switched individually when damaged - Far easier to maintain - all while creating a unique look.
Western Façade
Section
Closeup View
Isometric Model
Detailed Plan
Floorplan Fragment
View

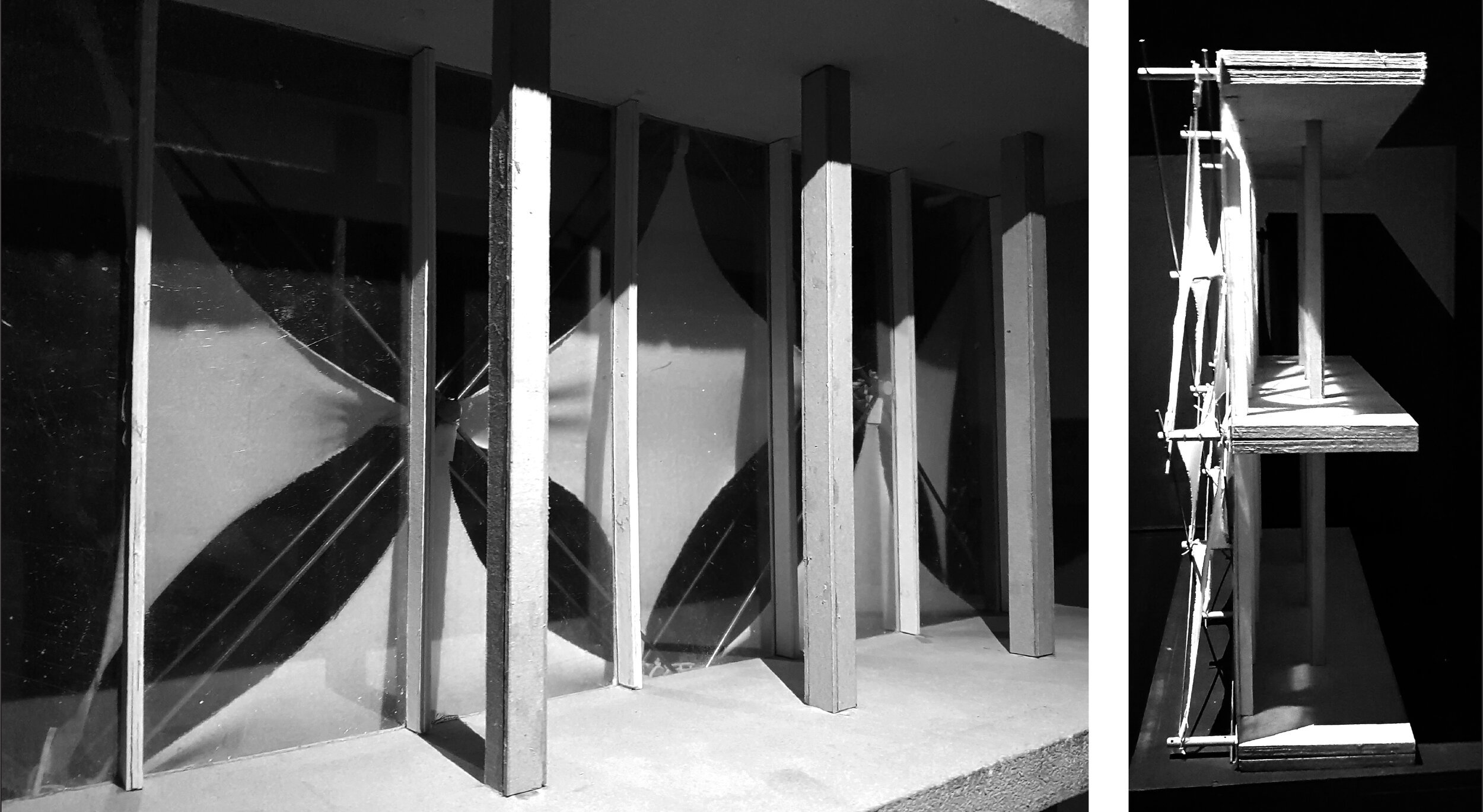

1:50 Fragment Model
1:50 Fragment Model
